bic_obj_node Class Reference

#include <rm3_undi_graph.h>

Inheritance diagram for bic_obj_node:

[legend]

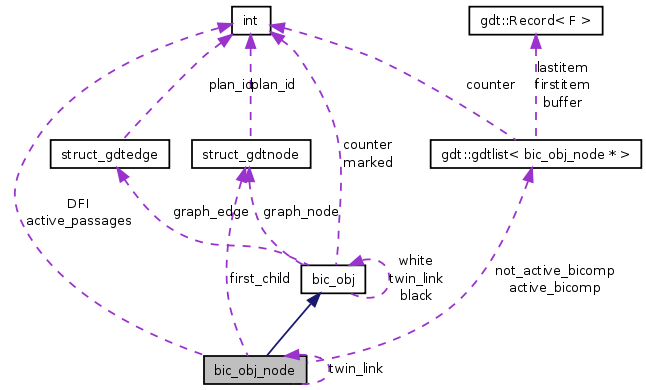

Collaboration diagram for bic_obj_node:

[legend]

List of all members.

Public Member Functions
	bic_obj_node ()
	bic_obj_node (gdtnode n)
bool	check_bicomp ()
Static Public Member Functions
static bic_obj_node *	my_new_bic_obj (gdtnode n, bic_obj_node *&bic_obj_node_actual_pointer)
Protected Member Functions
bic_obj_node *	next_node (bool black)
bool	walk_up (int target, bm_node_info node_vector[], gdt::gdtlist< bic_obj_node * > &secondary, undi_graph &ug)
bool	walk_down (bm_node_info node_vector[], gdt::gdtlist< bic_obj_node * > &secondary, undi_graph *ug, bool edge_to_be_inserted[], int flip[], bic_obj *&bic_obj_actual_pointer)
bool	extract_embedding (gdt::gdtstack< bic_obj * > &embedding_stack, undi_graph &ug)
bool	embedding_reporting (bm_node_info node_vector[], undi_graph &ug, int flip[], bic_obj_node *IMM[])
Protected Attributes
bic_obj_node *	twin_link
gdt::gdtlist < bic_obj_node * >	active_bicomp
gdt::gdtlist < bic_obj_node * >	not_active_bicomp
gdtnode	first_child
int	active_passages
bool	actual_previous_connector
int	DFI
bool	can_be_flipped
bool	active_walk_up
Friends
class	undi_graph

---

Detailed Description

Definition at line 439 of file rm3_undi_graph.h.

---

Constructor & Destructor Documentation

bic_obj_node::bic_obj_node

(

)

bic_obj_node::bic_obj_node

(

gdtnode

n

)

---

Member Function Documentation

static bic_obj_node* bic_obj_node::my_new_bic_obj	(	gdtnode	n,
		bic_obj_node *&	bic_obj_node_actual_pointer
	)			[static]

bic_obj_node* bic_obj_node::next_node

(

bool

black

)

[protected]

bool bic_obj_node::walk_up	(	int	target,
		bm_node_info	node_vector[],
		gdt::gdtlist< bic_obj_node * > &	secondary,
		undi_graph &	ug
	)			[protected]

bool bic_obj_node::walk_down	(	bm_node_info	node_vector[],
		gdt::gdtlist< bic_obj_node * > &	secondary,
		undi_graph *	ug,
		bool	edge_to_be_inserted[],
		int	flip[],
		bic_obj *&	bic_obj_actual_pointer
	)			[protected]

bool bic_obj_node::extract_embedding	(	gdt::gdtstack< bic_obj * > &	embedding_stack,
		undi_graph &	ug
	)			[protected]

bool bic_obj_node::embedding_reporting	(	bm_node_info	node_vector[],
		undi_graph &	ug,
		int	flip[],
		bic_obj_node *	IMM[]
	)			[protected]

bool bic_obj_node::check_bicomp

(

)

---

Friends And Related Function Documentation

friend class undi_graph [friend]

Reimplemented from bic_obj.

Definition at line 460 of file rm3_undi_graph.h.

---

Member Data Documentation

bic_obj_node* bic_obj_node::twin_link [protected]

Reimplemented from bic_obj.

Definition at line 444 of file rm3_undi_graph.h.

gdt::gdtlist<bic_obj_node*> bic_obj_node::active_bicomp [protected]

Definition at line 445 of file rm3_undi_graph.h.

gdt::gdtlist<bic_obj_node*> bic_obj_node::not_active_bicomp [protected]

Definition at line 446 of file rm3_undi_graph.h.

gdtnode bic_obj_node::first_child [protected]

Definition at line 447 of file rm3_undi_graph.h.

int bic_obj_node::active_passages [protected]

Definition at line 448 of file rm3_undi_graph.h.

bool bic_obj_node::actual_previous_connector [protected]

Definition at line 449 of file rm3_undi_graph.h.

int bic_obj_node::DFI [protected]

Definition at line 450 of file rm3_undi_graph.h.

bool bic_obj_node::can_be_flipped [protected]

Definition at line 451 of file rm3_undi_graph.h.

bool bic_obj_node::active_walk_up [protected]

Definition at line 452 of file rm3_undi_graph.h.

---

The documentation for this class was generated from the following file:

• rm3_undi_graph.h

---
