rm3_dime_orth_plan_undi_graph.h File Reference

#include <GDT/gdtlist.h>
#include <GDT/gdtmap.h>
#include <GDT/gdtgeometry.h>
#include <GDT/rm3_undi_graph.h>
#include <GDT/rm3_flow_dire_graph.h>
#include <GDT/rm3_plan_undi_graph.h>
#include <GDT/rm3_orth_plan_undi_graph.h>

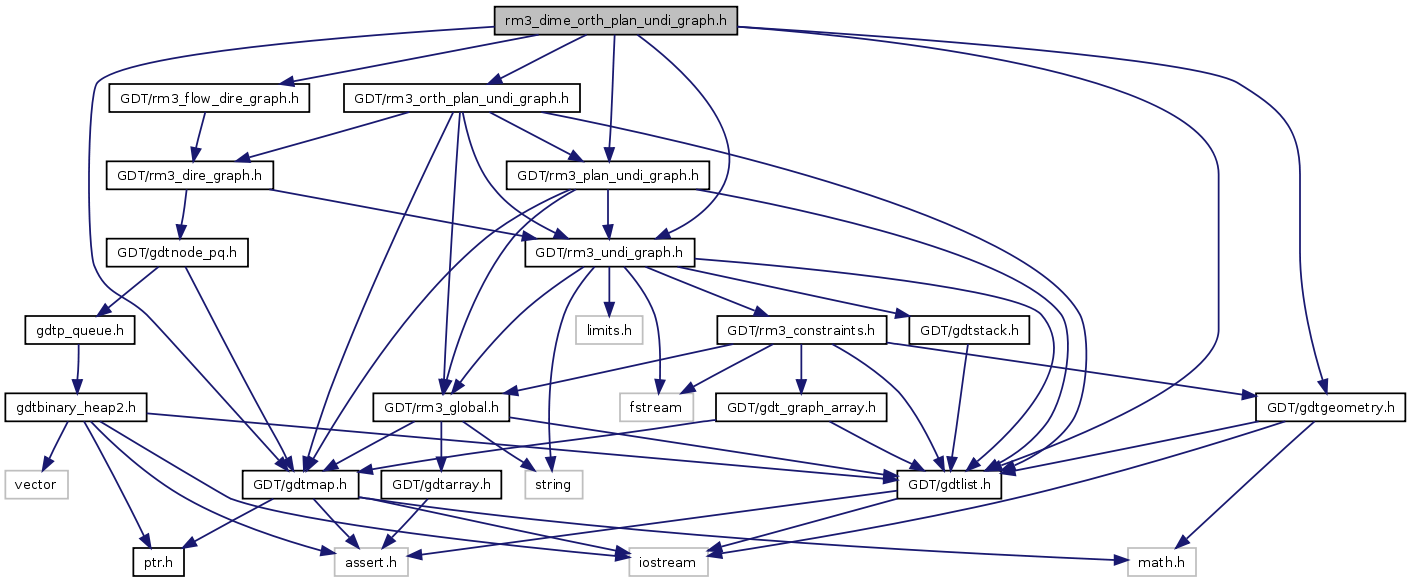

Include dependency graph for rm3_dime_orth_plan_undi_graph.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	map_node_set
struct	pos_incid_edges
struct	DD_struct
class	struct_dime_node_info
class	struct_dime_edge_info
class	struct_dime_border_step_info
struct	_solution
class	dime_orth_plan_undi_graph
Defines
#define	ROOT_INCL_ID   34009
#define	NORTH   0
#define	EAST   1
#define	SOUTH   2
#define	WEST   3
Typedefs
typedef short	heading_index_type
Enumerations
enum	heading_type {   north = 0, east = 1, south = 2, west = 3,   undefined_heading = 4 }
enum	slope_type { horizontal = 0, vertical = 1, undefined_slope = 2 }
enum	DD_terminal_node_type { source_terminal = 0, sink_terminal = 1 }
enum	DD_edge_completament_type { ONLY_SINK_OR_SOURCE_DIAGONALS = 1, ONLY_SINK_OR_SOURCE_DIAGONALS_FOR_EAGLE_BOUNDARY_EDGE = 2, WALK_ALONG_AND_SINK_OR_SOURCE_DIAGONALS = 3 }
Functions
std::istream &	operator>> (std::istream &in, heading_type &x)

---

Detailed Description

Definition in file rm3_dime_orth_plan_undi_graph.h.

---

Define Documentation

#define EAST   1

Definition at line 42 of file rm3_dime_orth_plan_undi_graph.h.

#define NORTH   0

Definition at line 41 of file rm3_dime_orth_plan_undi_graph.h.

#define ROOT_INCL_ID   34009

Definition at line 23 of file rm3_dime_orth_plan_undi_graph.h.

#define SOUTH   2

Definition at line 43 of file rm3_dime_orth_plan_undi_graph.h.

#define WEST   3

Definition at line 44 of file rm3_dime_orth_plan_undi_graph.h.

---

Typedef Documentation

typedef short heading_index_type

Enumerate type for slope. It's a short.

Definition at line 96 of file rm3_dime_orth_plan_undi_graph.h.

---

Enumeration Type Documentation

enum DD_edge_completament_type

Used only for the Dynamic Draw.

	Enumerate type for edges of a terminal line.

	    Current heading
	      ---------->

	                      o 2
	                     / \
	                    /   \
	                 1 /     \ 3

- - - - -o-------o- - - - - -
	                   \     /
	                    \   /
	                     \ /
	                      o 4

	The completator of map subnet of gdtedge of a terminal line may update
        the map subnet according these values:
	ONLY_SINK_OR_SOURCE_DIAGONALS                         = 1   only the edges 1-2 and 1-4
	ONLY_SINK_OR_SOURCE_DIAGONALS_FOR_EAGLE_BOUNDARY_EDGE = 2   only the edges 1-2 and 1-4, but on a eagle boundary gdtedge
	WALK_ALONG_AND_SINK_OR_SOURCE_DIAGONALS               = 3   the straigth gdtedge 1-3 and the edges 1-2 and 1-4

	For these edges, the direction is choosen according the value
	of "DD_terminal_node_type" of the gdtnode starting the terminal line.


Enumerator:

ONLY_SINK_OR_SOURCE_DIAGONALS
ONLY_SINK_OR_SOURCE_DIAGONALS_FOR_EAGLE_BOUNDARY_EDGE
WALK_ALONG_AND_SINK_OR_SOURCE_DIAGONALS

Definition at line 272 of file rm3_dime_orth_plan_undi_graph.h.

enum DD_terminal_node_type

Used only for the Dynamic Draw. Enumerate type for terminal gdtnode. Says the type of gdtnode that starts a terminal line. If the gdtnode is a source, the completator of map subnet of the edges of terminal line will create outgoing map edges, entering map edges if the type is sink. Allowed values:
source_terminal = 0
sink_terminal = 1

Enumerator:

source_terminal
sink_terminal

Definition at line 235 of file rm3_dime_orth_plan_undi_graph.h.

enum heading_type

Enumerate type for heading. Allowed values: north = 0, east = 1, south = 2, west = 3, and undefined_heading = 4.

Enumerator:

north
east
south
west
undefined_heading

Definition at line 72 of file rm3_dime_orth_plan_undi_graph.h.

enum slope_type

Enumerate type for slope. Allowed values: horizontal = 0, vertical = 1, and undefined_slope = 2.

Enumerator:

horizontal
vertical
undefined_slope

Definition at line 105 of file rm3_dime_orth_plan_undi_graph.h.

---

Function Documentation

std::istream& operator>>	(	std::istream &	in,
		heading_type &	x
	)			[inline]

Definition at line 84 of file rm3_dime_orth_plan_undi_graph.h.

---
