morpher Class Reference

#include <rm3_morpher.h>

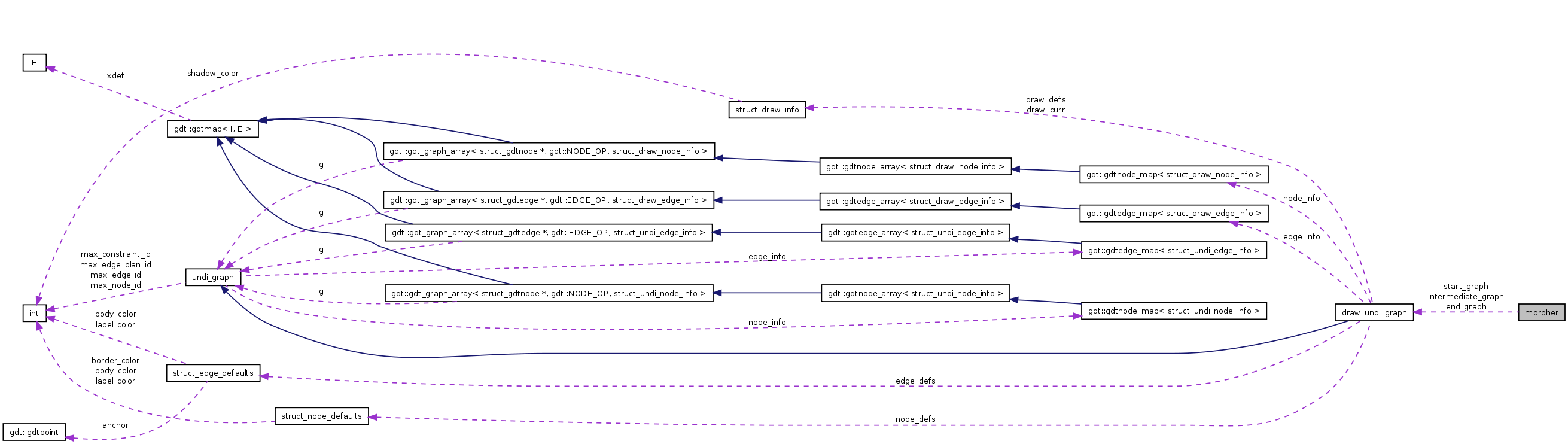

Collaboration diagram for morpher:

[legend]

List of all members.

Public Member Functions
	morpher (const draw_undi_graph &start_graph, const draw_undi_graph &end_graph)
	~morpher ()
draw_undi_graph *	update_intermediate (float alpha)

---

Detailed Description

Global class morpher. This class allows to trasform an orthogonal drawing of a graph into another drawing of the same graph.

Definition at line 28 of file rm3_morpher.h.

---

Constructor & Destructor Documentation

morpher::morpher	(	const draw_undi_graph &	start_graph,
		const draw_undi_graph &	end_graph
	)

Constructor.

PRECONDITIONS: "start_graph" and "end_graph" must have corresponding nodes and edges (with the same gdtnode and gdtedge id).

morpher::~morpher

(

)

Destructor.

---

Member Function Documentation

draw_undi_graph* morpher::update_intermediate

(

float

alpha

)

update the intermediate_graph with coordinates between those of start_graph and those of end_graph. If "alpha" is 0, then intermediate_graph has the same coordinates than start_graph, if "alpha" is 1, then intermediate_graph has the same coordinates than end_graph.

---

The documentation for this class was generated from the following file:

• rm3_morpher.h

---
