rm3_constraints.h File Reference

#include <fstream>
#include <GDT/gdtlist.h>
#include <GDT/gdt_graph_array.h>
#include <GDT/gdtgeometry.h>
#include <GDT/rm3_global.h>

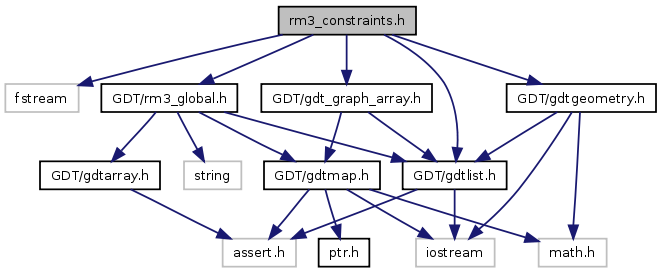

Include dependency graph for rm3_constraints.h:

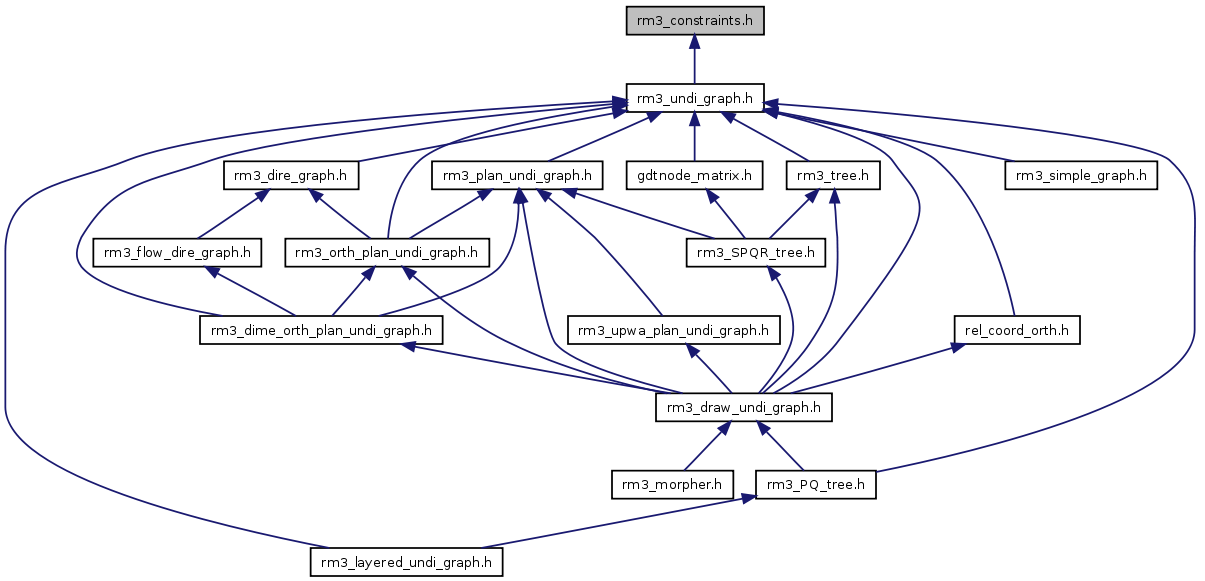

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	struct_constraint
class	struct_constraint_uncrossable_edge
class	struct_constraint_number_of_bends_on_edge
class	struct_constraint_bend_direction_on_edge
class	struct_constraint_same_face_node
class	struct_constraint_same_face_ordered_nodes
class	struct_constraint_node_width
class	struct_constraint_node_height
class	struct_constraint_angle_sweep
class	struct_constraint_edge_attachment_wrt_previous_corner
class	struct_constraint_min_tieing
Defines
#define	ROOT_INCL_ID   34014
Typedefs
typedef struct_constraint *	constraint
typedef struct_constraint_uncrossable_edge *	constraint_uncrossable_edge
typedef struct_constraint_number_of_bends_on_edge *	constraint_number_of_bends_on_edge
typedef struct_constraint_bend_direction_on_edge *	constraint_bend_direction_on_edge
typedef struct_constraint_same_face_node *	constraint_same_face_node
typedef struct_constraint_same_face_ordered_nodes *	constraint_same_face_ordered_nodes
typedef struct_constraint_node_width *	constraint_node_width
typedef struct_constraint_node_height *	constraint_node_height
typedef struct_constraint_angle_sweep *	constraint_angle_sweep
typedef struct_constraint_edge_attachment_wrt_previous_corner *	constraint_edge_attachment_wrt_previous_corner
typedef struct_constraint_min_tieing *	constraint_min_tieing
Enumerations
enum	constraint_type {   UNCROSSABLE_EDGES, NUMBER_OF_BENDS_ON_EDGE, BEND_DIRECTION_ON_EDGE, SAME_FACE_NODES,   SAME_FACE_ORDERED_NODES, NODE_WIDTH, NODE_HEIGHT, ANGLE_SWEEP,   EDGE_ATTACHMENT_WRT_PREVIOUS_CORNER, MIN_TIEING }
enum	bend_constraint { NONE, ANY, MINIMAL }

---

Detailed Description

Definition in file rm3_constraints.h.

---

Define Documentation

#define ROOT_INCL_ID   34014

Definition at line 20 of file rm3_constraints.h.

---

Typedef Documentation

typedef struct_constraint* constraint

Definition at line 57 of file rm3_constraints.h.

typedef struct_constraint_angle_sweep* constraint_angle_sweep

Definition at line 84 of file rm3_constraints.h.

typedef struct_constraint_bend_direction_on_edge* constraint_bend_direction_on_edge

Definition at line 69 of file rm3_constraints.h.

typedef struct_constraint_edge_attachment_wrt_previous_corner* constraint_edge_attachment_wrt_previous_corner

Definition at line 87 of file rm3_constraints.h.

typedef struct_constraint_min_tieing* constraint_min_tieing

Definition at line 90 of file rm3_constraints.h.

typedef struct_constraint_node_height* constraint_node_height

Definition at line 81 of file rm3_constraints.h.

typedef struct_constraint_node_width* constraint_node_width

Definition at line 78 of file rm3_constraints.h.

typedef struct_constraint_number_of_bends_on_edge* constraint_number_of_bends_on_edge

Definition at line 66 of file rm3_constraints.h.

typedef struct_constraint_same_face_node* constraint_same_face_node

Definition at line 72 of file rm3_constraints.h.

typedef struct_constraint_same_face_ordered_nodes* constraint_same_face_ordered_nodes

Definition at line 75 of file rm3_constraints.h.

typedef struct_constraint_uncrossable_edge* constraint_uncrossable_edge

Definition at line 63 of file rm3_constraints.h.

---

Enumeration Type Documentation

enum bend_constraint

Enumerator:

NONE
ANY
MINIMAL

Definition at line 369 of file rm3_constraints.h.

enum constraint_type

Enumerator:

UNCROSSABLE_EDGES
NUMBER_OF_BENDS_ON_EDGE
BEND_DIRECTION_ON_EDGE
SAME_FACE_NODES
SAME_FACE_ORDERED_NODES
NODE_WIDTH
NODE_HEIGHT
ANGLE_SWEEP
EDGE_ATTACHMENT_WRT_PREVIOUS_CORNER
MIN_TIEING

Definition at line 29 of file rm3_constraints.h.

---
