struct_constraint Class Reference

#include <rm3_constraints.h>

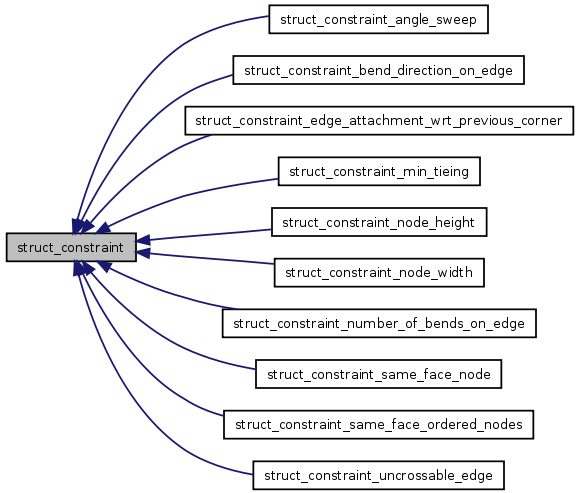

Inheritance diagram for struct_constraint:

[legend]

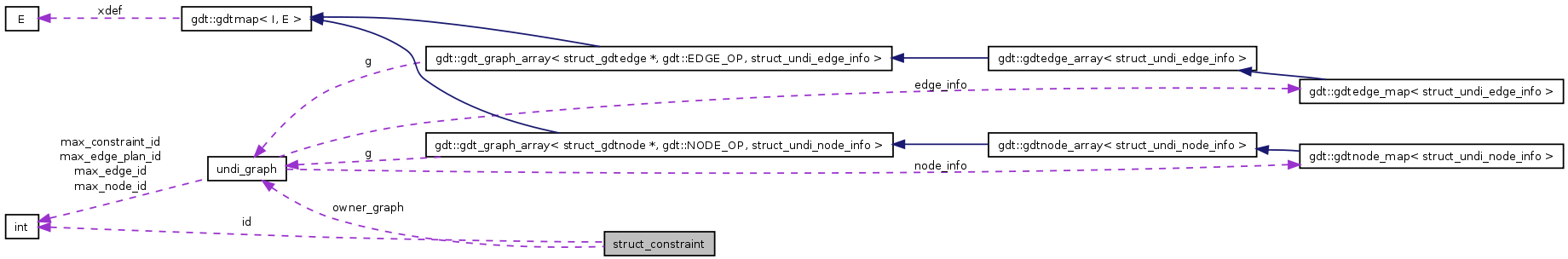

Collaboration diagram for struct_constraint:

[legend]

List of all members.

Public Member Functions
virtual	~struct_constraint ()
int	get_id () const
constraint_type	get_type () const
undi_graph &	get_owner_graph () const
gdt::list_item	get_pos_in_owner_graph_list () const
virtual constraint	copy (undi_graph &)=0
virtual void	print (std::ostream &os=std::cout) const =0
Protected Member Functions
	struct_constraint (constraint_type, undi_graph &)
void	remove_from_owner_graph_list ()
void	remove_from_edge_list (gdtedge)
void	remove_from_node_list (gdtnode)
gdt::list_item	add_to_edge_list (gdtedge)
gdt::list_item	add_to_node_list (gdtnode)
virtual bool	update_after_del_edge (gdtedge e)=0
virtual bool	update_after_del_node (gdtnode e)=0
virtual bool	update_after_split_edge (gdtedge e, gdtedge e1, gdtedge e2)=0
virtual bool	update_after_split_node (gdtnode v, gdtnode v1, gdtnode v2)=0
virtual bool	update_after_merge_edges (gdtedge e1, gdtedge e2, gdtedge e)=0
virtual bool	update_after_merge_nodes (gdtnode v1, gdtnode v2, gdtnode v)=0
virtual void	update_after_edge_translation (gdtedge e, gdtnode ve1, gdtnode ve2, gdtedge d, gdtnode vd1, gdtnode vd2)=0
virtual void	update_on_path_replacing_edge (gdtedge e, gdt::gdtlist< gdtedge > path, undi_graph &ug)=0
Protected Attributes
int	id
Friends
class	undi_graph

---

Detailed Description

Definition at line 110 of file rm3_constraints.h.

---

Constructor & Destructor Documentation

struct_constraint::struct_constraint	(	constraint_type	,
		undi_graph &
	)			[protected]

virtual struct_constraint::~struct_constraint

(

)

[virtual]

---

Member Function Documentation

void struct_constraint::remove_from_owner_graph_list

(

)

[protected]

void struct_constraint::remove_from_edge_list

(

gdtedge

)

[protected]

void struct_constraint::remove_from_node_list

(

gdtnode

)

[protected]

gdt::list_item struct_constraint::add_to_edge_list

(

gdtedge

)

[protected]

gdt::list_item struct_constraint::add_to_node_list

(

gdtnode

)

[protected]

virtual bool struct_constraint::update_after_del_edge

(

gdtedge

e

)

[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

virtual bool struct_constraint::update_after_del_node

(

gdtnode

e

)

[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

virtual bool struct_constraint::update_after_split_edge	(	gdtedge	e,
		gdtedge	e1,
		gdtedge	e2
	)			[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

virtual bool struct_constraint::update_after_split_node	(	gdtnode	v,
		gdtnode	v1,
		gdtnode	v2
	)			[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

virtual bool struct_constraint::update_after_merge_edges	(	gdtedge	e1,
		gdtedge	e2,
		gdtedge	e
	)			[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

virtual bool struct_constraint::update_after_merge_nodes	(	gdtnode	v1,
		gdtnode	v2,
		gdtnode	v
	)			[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

virtual void struct_constraint::update_after_edge_translation	(	gdtedge	e,
		gdtnode	ve1,
		gdtnode	ve2,
		gdtedge	d,
		gdtnode	vd1,
		gdtnode	vd2
	)			[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

virtual void struct_constraint::update_on_path_replacing_edge	(	gdtedge	e,
		gdt::gdtlist< gdtedge >	path,
		undi_graph &	ug
	)			[protected, pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, and struct_constraint_edge_attachment_wrt_previous_corner.

int struct_constraint::get_id

(

)

const

constraint_type struct_constraint::get_type

(

)

const

undi_graph& struct_constraint::get_owner_graph

(

)

const

gdt::list_item struct_constraint::get_pos_in_owner_graph_list

(

)

const

virtual constraint struct_constraint::copy

(

undi_graph &

)

[pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, struct_constraint_edge_attachment_wrt_previous_corner, and struct_constraint_min_tieing.

virtual void struct_constraint::print

(

std::ostream &

os = std::cout

)

const [pure virtual]

Implemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, struct_constraint_edge_attachment_wrt_previous_corner, and struct_constraint_min_tieing.

---

Friends And Related Function Documentation

friend class undi_graph [friend]

Reimplemented in struct_constraint_uncrossable_edge, struct_constraint_number_of_bends_on_edge, struct_constraint_bend_direction_on_edge, struct_constraint_same_face_node, struct_constraint_same_face_ordered_nodes, struct_constraint_node_width, struct_constraint_node_height, struct_constraint_angle_sweep, struct_constraint_edge_attachment_wrt_previous_corner, and struct_constraint_min_tieing.

Definition at line 113 of file rm3_constraints.h.

---

Member Data Documentation

int struct_constraint::id [protected]

Definition at line 138 of file rm3_constraints.h.

---

The documentation for this class was generated from the following file:

• rm3_constraints.h

---
